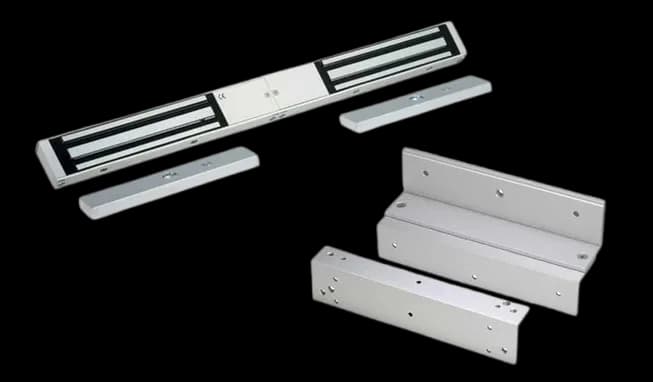

EURONET Magnetic Lock 600lb
EURONET EN-MLK600 electromagnetic lock delivering 600Lbs (280KG) holding force for commercial, residential and industrial access control. Selectable DC 12V/24V operation with anti-residual magnetism for instant, clean door release.
ModelEN-MLK600
Holding force600Lbs / 280KG
Input voltageDC 12V / DC 24V selectable
ISO 9001:2015 Certified · Trusted in 60+ Countries
Specifications
Technical Details
| Model | EN-MLK600 |
|---|---|
| Holding force | 600Lbs / 280KG |
| Input voltage | DC 12V / DC 24V selectable |
| Current draw | 500mA @12V / 250mA @24V |
| Lock body dimensions | 250 x 48 x 27 mm |
| Armature plate | 180 x 38 x 13 mm |
| Weight | 1.9 kg |
| Power consumption | 6W |
| Configuration | Single door, 2-wire |
| Indicator | Red LED |
Product Highlights
- 600Lbs (280KG) verified holding force
- Dual-voltage DC 12V/24V selectable operation
- Anti-residual magnetism for instant clean release
- Fail-safe, releases automatically on power loss
- Red LED status indicator
