3KW/5.12KWh · 5KW/10.24KWhResidential Solution
EURONET ESS Power Station
High-frequency all-in-one ESS power station with integrated inverter, LiFePO4 battery, and MPPT controller. Available in 3KW/5.12KWh and 5KW/10.24KWh configurations.
ModelsESS 3KW/5.12KWh · ESS 5KW/10.24KWh
Rated Power3600W / 5000W
Battery25.6V-200AH / 51.2V-200AH (Built-in)
ISO 9001:2015 Certified · Trusted in 60+ Countries
Specifications
Technical Details
| Models | ESS 3KW/5.12KWh · ESS 5KW/10.24KWh |
|---|---|
| Rated Power | 3600W / 5000W |
| Battery | 25.6V-200AH / 51.2V-200AH (Built-in) |
| PV Input | Up to 5000W / 5500W |
| Max PV Voltage | 500VDC |
| MPPT Range | 40-450VDC |
| Output | Pure Sine Wave · 220VAC |
| Efficiency | 94% |
| Transfer Time | 10ms (laptop) / 20ms (appliance) |
| Dimensions (D×W×H) | 627 × 471 × 580mm |
| Weight | 69kg / 102.5kg |
| Operating Temp | -10°C to +50°C |
Product Highlights
- Complete all-in-one: inverter + LiFePO4 battery + MPPT controller
- Pure sine wave output for all household appliances
- Grid mode and battery mode switching with 10-20ms transfer
- Double CPU intelligent control for excellent performance
- Smart fan control for quiet, safe, and reliable operation
Technical Datasheet
Contact us for detailed specifications and technical documentation.
Related Products
Explore Similar Products
Image coming soon
Neo Series Battery
High Voltage Battery 716V 100Ah

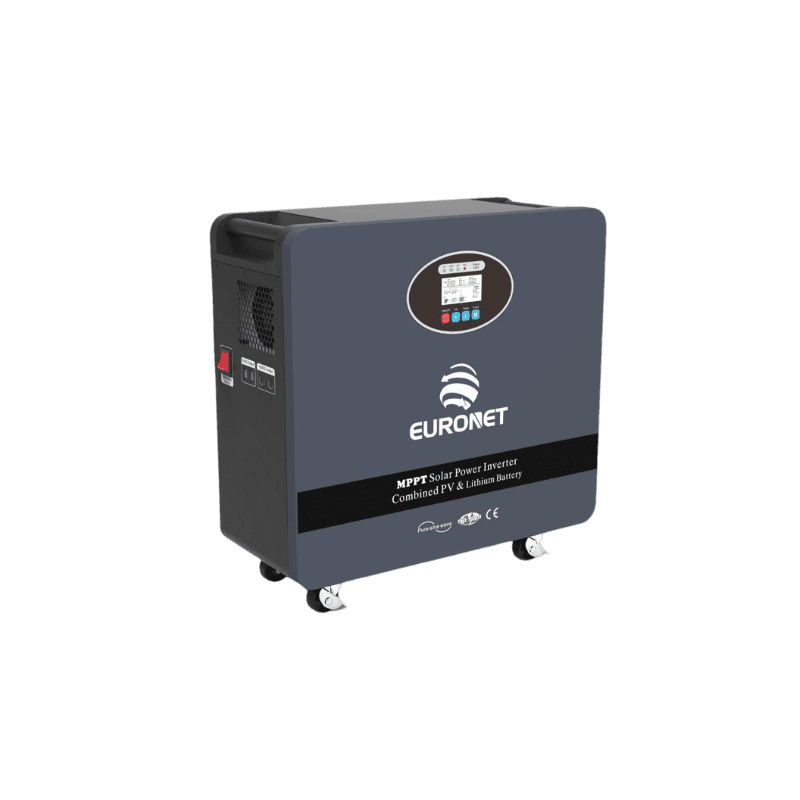

Low Frequency Power Station

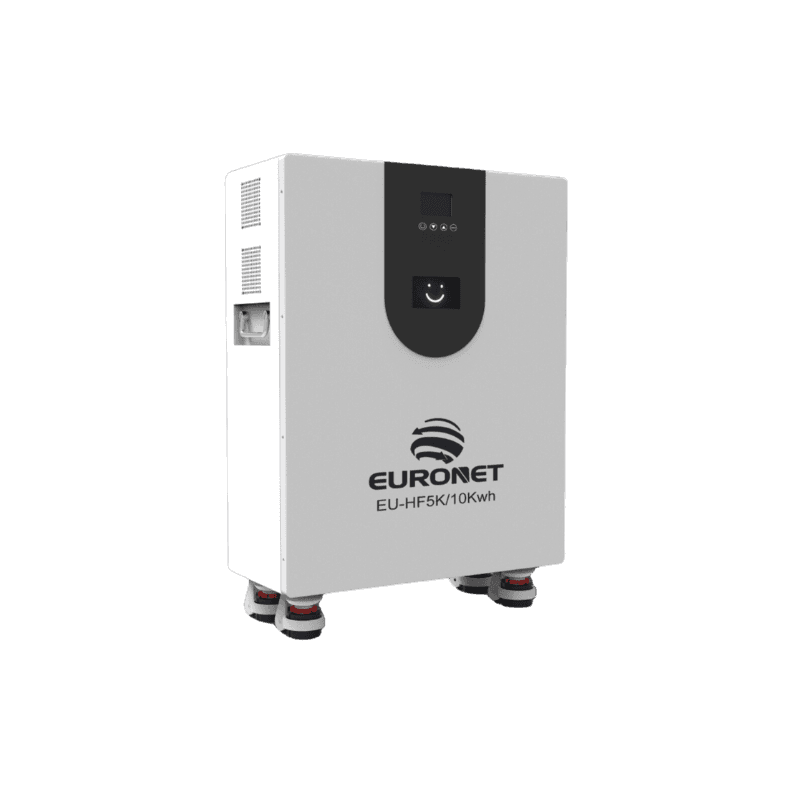

ESS Power Station (Advanced)
