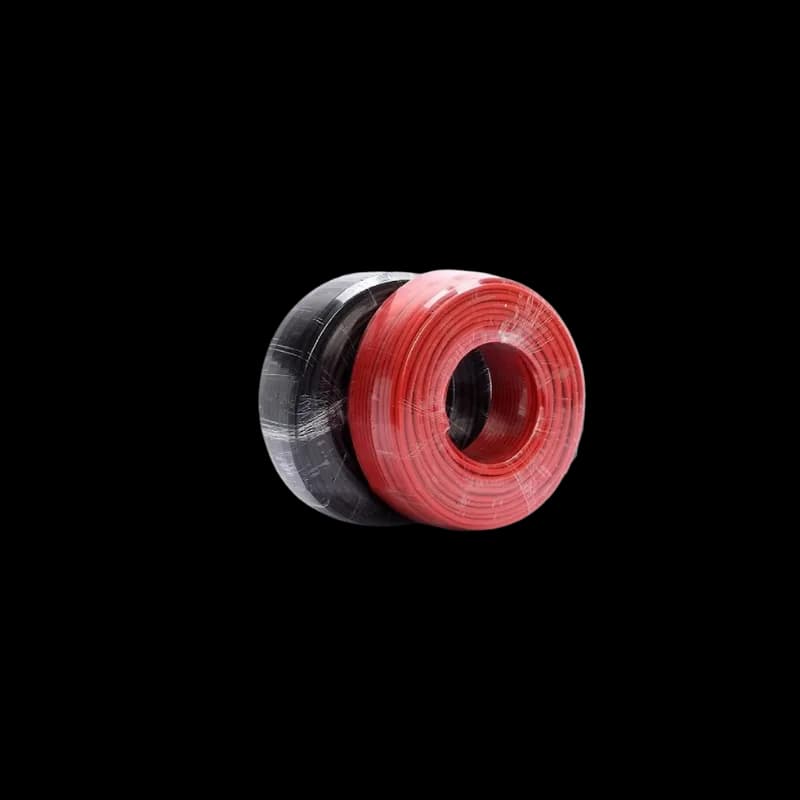

Euronet Solar Cables
Essential Components for Solar Installations. TUV certified solar PV cables in 4mm² to 25mm² sizes, featuring tinned copper conductors and irradiated XLPO insulation for 25-year outdoor service life.
Sizes Available4mm² / 6mm² / 10mm² / 16mm² / 25mm²
ConductorTinned copper wire
Insulation125°C Electron-beam irradiated XLPO
ISO 9001:2015 Certified · Trusted in 60+ Countries
Key Features
Built for Reliability
TUV Certified
Manufactured to TUV and IEC standards with flame-retardant materials for maximum safety and compliance.
UV & Weather Resistant
Designed for outdoor exposure with temperature ratings from -40°C to +90°C and UV-stable insulation.
Low Resistance
Tinned copper conductors and precision-engineered contacts minimize voltage drop and power loss.
25-Year Service Life
Long-lasting materials and construction rated for decades of continuous outdoor solar installation use.
Specifications
Technical Details
Sizes Available4mm² / 6mm² / 10mm² / 16mm² / 25mm²
ConductorTinned copper wire
Insulation125°C Electron-beam irradiated XLPO
Rated VoltageAC U0/U 1.0/1.0KV · DC 1.5KV
Temp Range-4°C to +90°C
Max Conductor Temp120°C
Service Life25 years
ColorsBlack / Red / Grey / Brown
StandardTUV 2PfG 1169
Spool Lengths100m / 200m / 500m / 1000m rolls
Flame RetardantEN60332-1-2
Product Highlights
- TUV 2PfG 1169 certified for solar PV applications
- Tinned copper conductor for corrosion resistance
- Irradiated XLPO insulation — 25-year service life
- Available in 4mm² to 25mm² for any system size
- UV-resistant and flame-retardant (EN60332-1-2)
