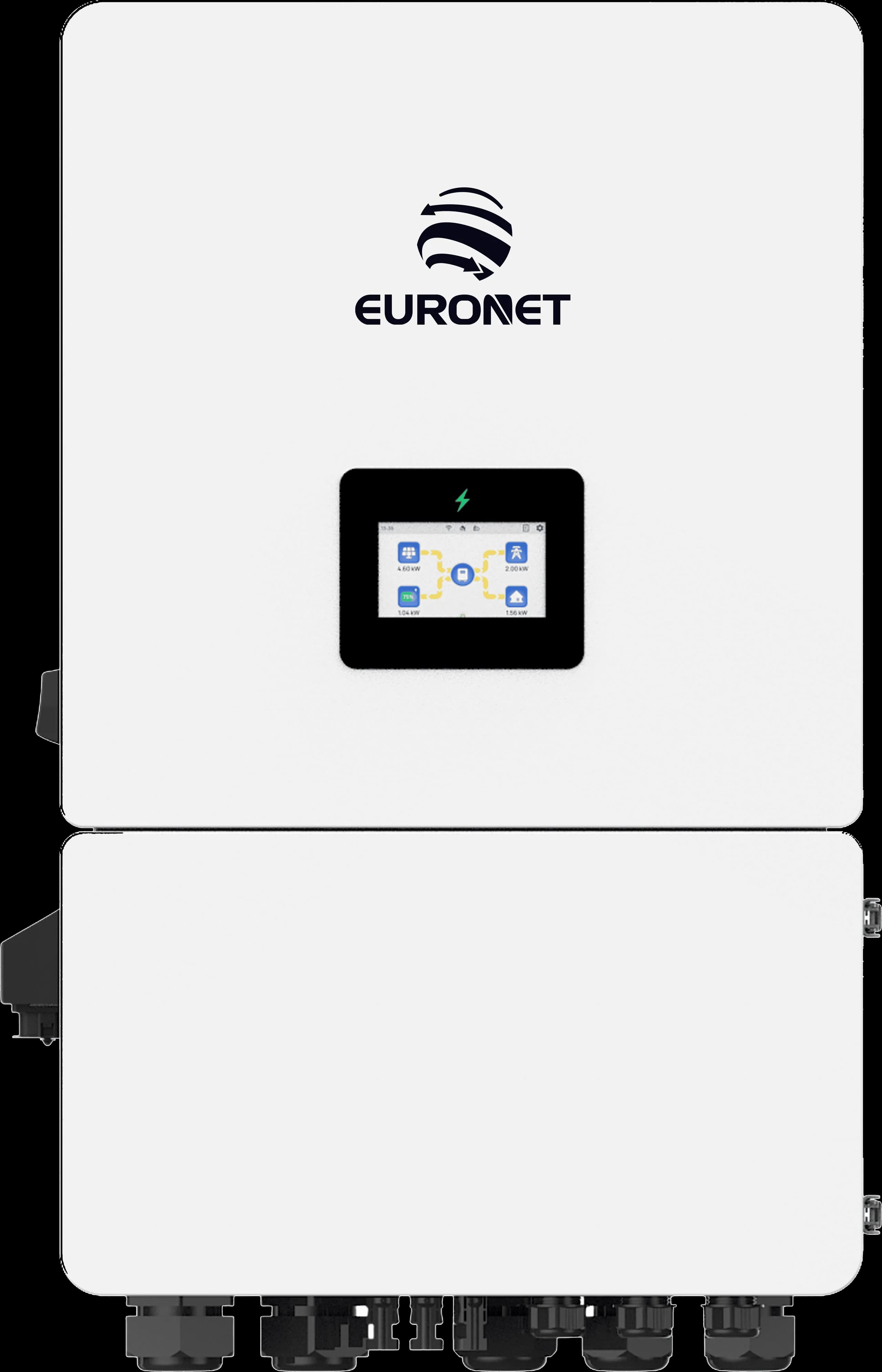

Euronet Edge Series Hybrid Inverter 20KW 48V
EURONET GEN 5 Edge Series E-EDG20KW400V-IP65 three-phase hybrid solar inverter converting solar energy into usable AC power while storing surplus energy in battery for later use. Dual 48V battery ports, 3 independent MPPTs and IP65 protection for reliable indoor or outdoor installation.
ModelE-EDG20KW400V-IP65
Rated AC output power20,000 W
Max. AC output apparent power22,000 VA
ISO 9001:2015 Certified · Trusted in 60+ Countries
Specifications
Technical Details
ModelE-EDG20KW400V-IP65
Rated AC output power20,000 W
Max. AC output apparent power22,000 VA
Battery voltage48V (2 ports, 40-60V range)
Max. charge/discharge current380A / 380A
Number of MPPT trackers3
MPPT voltage range160-980V DC
Max. PV usable power30,000W
Nominal grid voltage220/380V, 230/400V, 240/415V (3W+N+PE)
Transfer time<10ms
CommunicationRS485, CAN (BMS), DRM, optional Wi-Fi/LAN
ProtectionClass I, anti-islanding, DC reverse, surge (DC Type II / AC Type III), GFCI
Dimensions (W x H x D)460 x 742 x 266 mm
Weight50 kg
Enclosure ratingIP65
Operating temperature-25C to 60C
Warranty5 years (10 years optional)
Product Highlights
- 20kW three-phase hybrid output, self-consumption, feed-in, backup & off-grid modes
- Dual 48V battery ports, up to 380A charge current
- 3 independent MPPTs across 160-980V tracking range
- CAN-based parallel operation for scalable capacity
- IP65 weatherproof, -25C to 60C rated

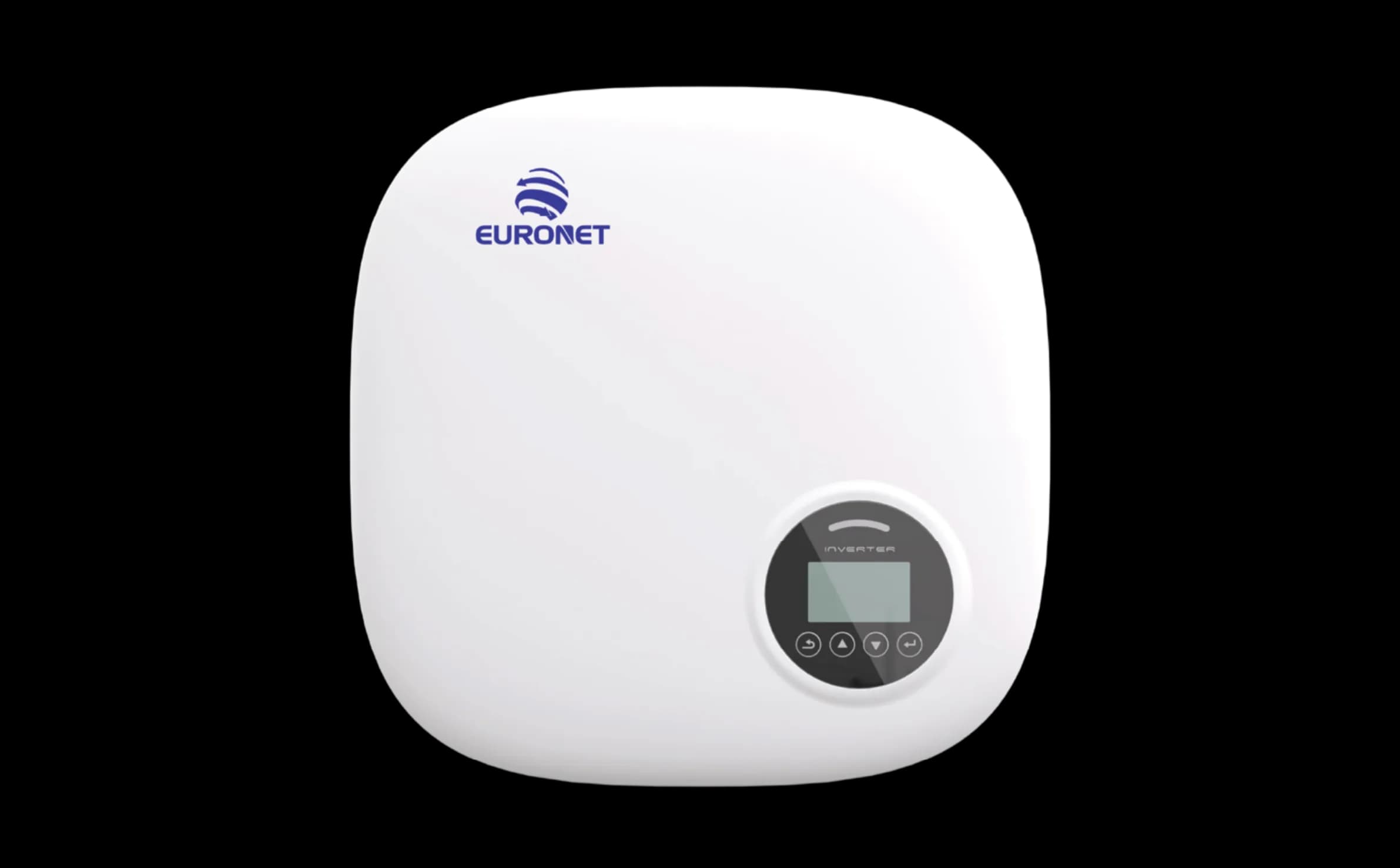

PV Inverter 5KW
PV Inverter 10KW

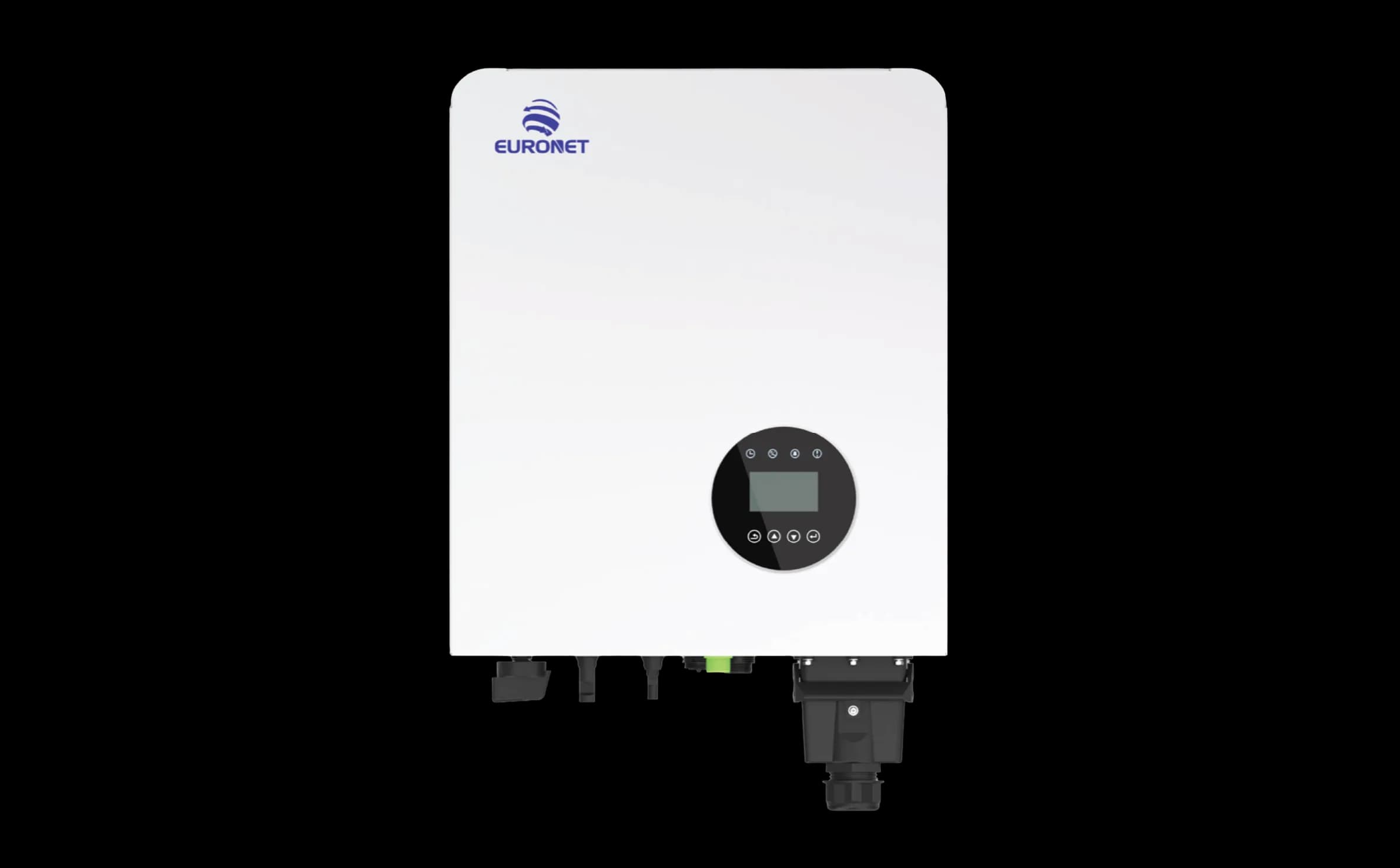

PV Inverter 15KW
