Solar Charge Controllers
PWM and MPPT solar charge controllers for off-grid and hybrid solar installations — from entry-level PWM regulators for 12V/24V systems to IP65-rated 60A MPPT units with 97.6% efficiency and RS485 communication.
3
Controller Models
97.6%
Peak MPPT Efficiency
PWM & MPPT
Charging Modes
IP65
Outdoor Rated
Pick the right controller for your array
A solar charge controller sits between the PV array and the battery bank, regulating the charging current to keep cells within their voltage window and stop them from being over-discharged. Two algorithms dominate the market. PWM controllers connect the panel directly to the battery in fast pulses — simple, cheap, and perfectly adequate when the panel voltage already matches the battery and the array is small. MPPT controllers run an algorithm that finds the panel’s maximum-power-point and converts the harvested DC to battery voltage at up to 97.6% efficiency, recovering 20–30% more energy than PWM in cool weather or oversized arrays.

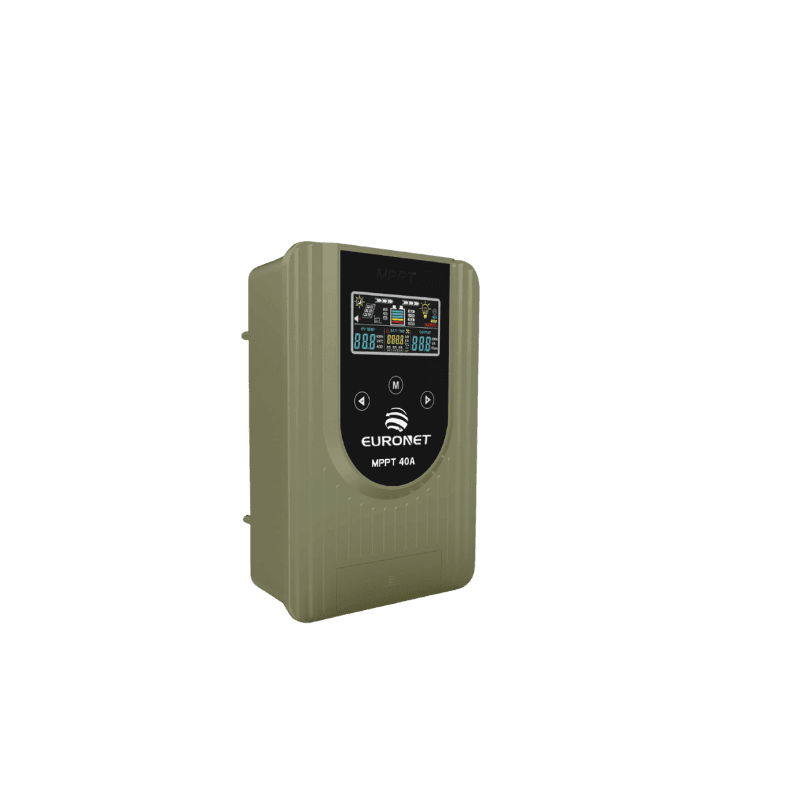

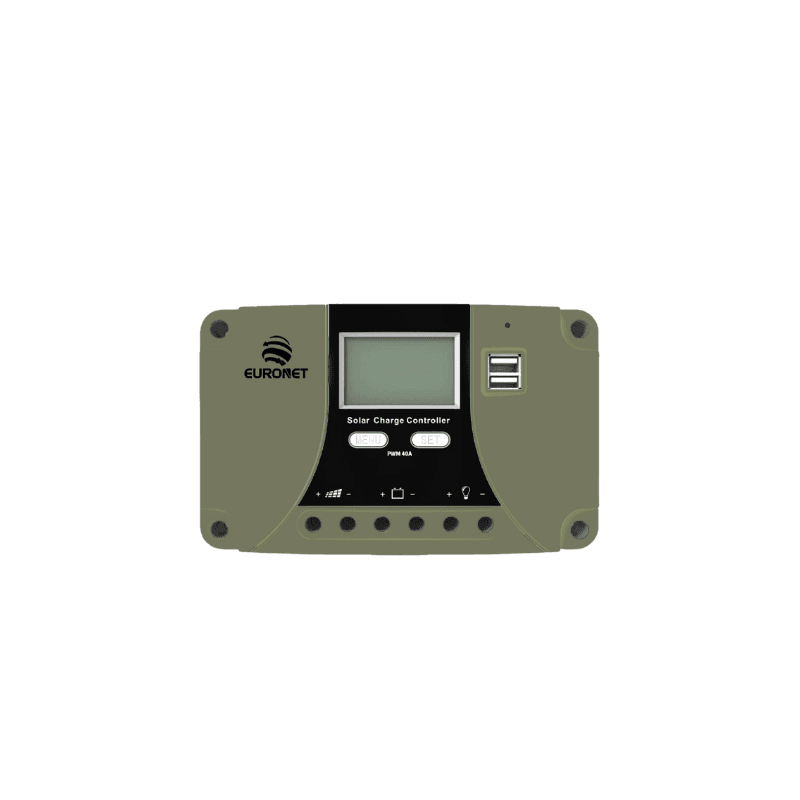

The Euronet range covers both. The PWM Controller is the workhorse for small 12V/24V systems with auto voltage detection, timer and light-control modes for off-grid lighting. The IP65-rated MPPT Controller scales from 30A to 60A with color LCD, RS485 and RJ45 ports, AL-alloy heat sink with cooling fan, and DC/AC surge protection — rated for outdoor installation. The MPPT Controller (Advanced) extends the same platform to higher-power arrays with optional string monitoring for multi-string PV systems and enhanced communication for smart energy management.
PWM — Pulse Width Modulation
Entry-level chargers that switch the panel directly onto the battery in fast pulses. Ideal for 12V/24V systems where the panel voltage already matches the battery, with auto-detection and multi-stage charging.
MPPT — Maximum Power Point Tracking
Algorithmic chargers that step panel voltage down to battery voltage at up to 97.6% efficiency — typically 20–30% more harvest than PWM in cool conditions or when panels are oversized for the battery bank.
Comprehensive Protection
Reverse polarity, over-charge, over-discharge, short-circuit, over-temperature, lightning surge and reactive-power protection — with IP65 enclosures rated for outdoor and harsh-environment installations.
Multi-Chemistry Charging
Customisable charging profiles for gel, sealed, flooded, USR and lithium batteries. The MPPT range adds RS485 and RJ45 monitoring so the inverter and BMS can read state-of-charge in real time.
Our Charge Controller Lineup
