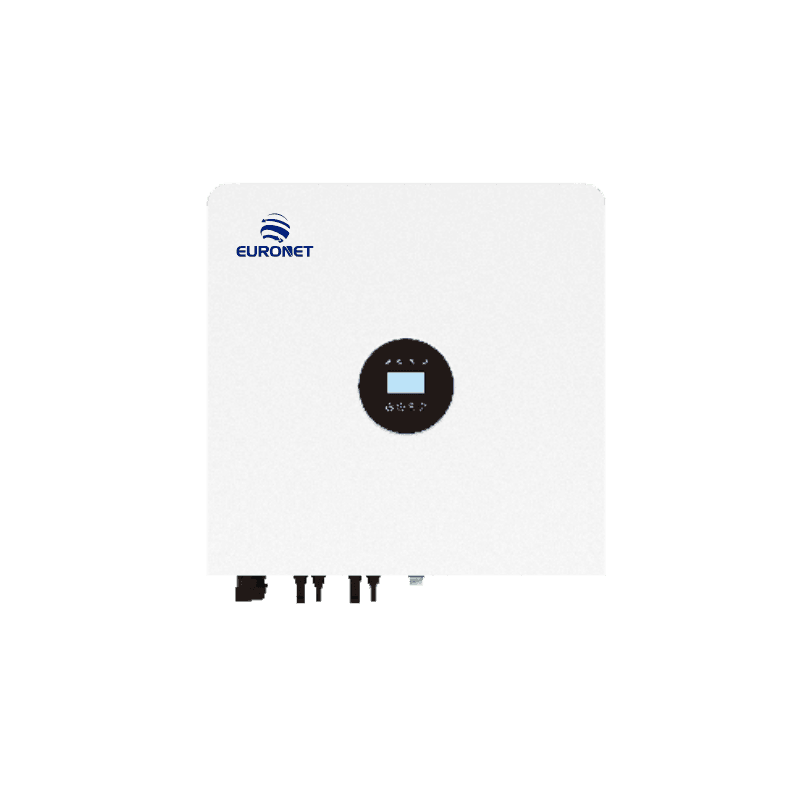

Euronet PV Inverter 80KW
Solar Inverters

Euronet PV Inverter 80KW

EURONET 80kW transformerless grid-tie (on-grid) solar inverter that converts PV DC into clean AC and exports surplus energy to the utility grid. Designed for commercial and industrial rooftop and ground-mount plants with multi-MPPT tracking for maximum harvest.

ModelEU-OG/80KSF
Rated AC output80 kW
TopologyTransformerless string inverter, grid-tie
ISO 9001:2015 Certified · Trusted in 60+ Countries
Specifications

Technical Details

ModelEU-OG/80KSF
Rated AC output80 kW
TopologyTransformerless string inverter, grid-tie
OutputThree-phase, 230/400V, 3P+N+PE, 50/60 Hz
Max. DC voltage1100V
Number of MPPT trackers4
Strings per MPPT3
Max. efficiency98.6%
Euro efficiency98.3%
ProtectionAnti-islanding, DC reverse-polarity, AC/DC surge, over/under voltage & frequency, insulation detection
Dimensions (W x H x D)548x540x289mm
Weight55kg
CoolingFan cooling
EnclosureIP66
Operating temperature-25°C to +60°C
MonitoringRS-485 / WiFi / 4G, LCD/Bluetooth+App

Product Highlights

  • 80kW grid-tie output, ~98% peak efficiency
  • Multi-MPPT for higher daily energy harvest
  • IP65 outdoor-rated enclosure
  • Integrated anti-islanding & surge protection
  • Remote monitoring via app/portal

Technical Datasheet

Download the full technical specification sheet for this product.
